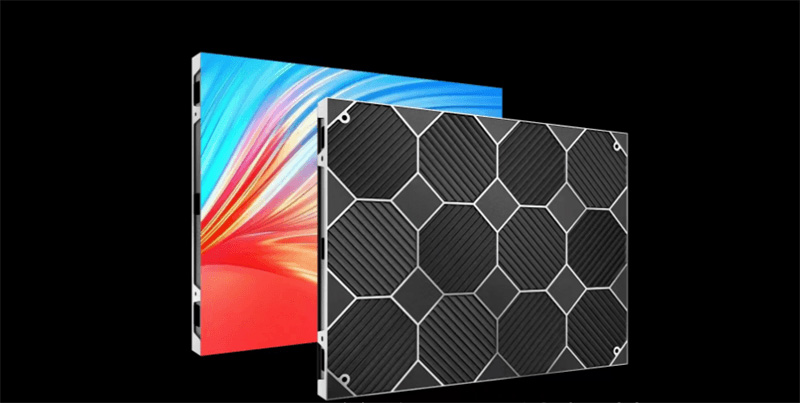

1. Die-casting aluminum , low temp-rise
2. Hard Connection, HUB card design, Without Any Cables
3. Magnetic front service or Back service with screw
4. High-efficiency cooling, No fan ,mute design, noise-free.
5. High refresh rate , low light high gray
6. High precision, seamless splicing, accurate to size of the electrical and mechanical processing 0.1mm
7. Lightweight - weighs only 7kg, single person can be a single portable, and extremely easy to install;
Order(MOQ) :
1 sqmPayment :
T/T, L/C 30% advance, 70% balancePanel Size :
640x480mmBrightness :
800-1000 nitsShipping Port :
Shenzhen, ChinaLead Time :
5- 10 daysWeight :
5.8kg
- The weight of the cabinet is only 6.5kg, 30% lighter than the traditional iron box, which saves a lot of cost.
- Anti-knock design to avoid damage to the module, reduce maintenance and improve work efficiency.
-Maintain the suction cup tool before use, suck the module (the iron plate is installed on the back of the module),
easy to disassemble and assemble.
- High brightness, high contrast, High Grayscale
Our high refresh rate LED display breathes life into every moment. With refresh rates surpassing industry standards,
each pixel refreshes at lightning speed, ensuring fluid and seamless motion portrayal. No matter the fast-paced action or intricate details,
our display offers an unrivaled smoothness that will leave your viewers stunned.
Crafted with utmost precision and powered by advanced technology, our LED display promises unmatched reliability and longevity.
With meticulous attention to detail, we have engineered a display that not only meets but exceeds industry standards, ensuring consistent and exceptional performance for years to come.
Specifications
Parameters |
LJ 1.25 |
LJ 1.5 |
LJ 1.6 |
LJ 1.8 |
LJ 2.0 |
LJ 2.5 |
LJ 3.0 |
LJ 4.0 |
LJ 5.0 |
Pixel Pitch(mm) |
1.25 |
1.538 |
1.667 |
1.86 |
2 |
2.5 |
3.076 |
4 |
5 |
LED configuration |
SMD1010 |
SMD1010/1212 |
SMD1515/SMD2020 |
SMD2020 |
|||||
Module size(mm) |
320*160*14 |
||||||||
Module resolution |
256*128 |
208*104 |
192*96 |
172*86 |
160*80 |
128*64 |
104*52 |
80*40 |
64*32 |
Cabinet size(mm) |
640*480*44 |
||||||||
Cabinet resolution |
512*384 |
416*312 |
384*288 |
344*258 |
320*240 |
256*192 |
208*156 |
160*120 |
128*96 |
Cabinet weight(kg) |
5.8kg/Panel |
||||||||
Brightness(cd/m2) |
600-1000 |
||||||||
Max Power Consumption |
580(W/m2) |
480(W/m1) |
480(W/m1) |
480(W/m1) |
480(W/m1) |
580(W/m1) |
|||
Avg Power Consumption |
225(W/m2) |
193(W/mi) |
193(W/mJ) |
193W/m2) |
193(W/m1) |
225(W/m2) |
|||
Refresh rate |
3840Hz |
1920-3840Hz |
|||||||
IPRatingfFront/Rear) |
IP31/IP30 |
